RigReady -- RV Weight & Safety Manager
RigReady
Weight · Tires · Safety
🚐
RigReady
No vehicle selected
Edit RV
Modify specs below
Identity
Dimensions
Include roof AC units, antennas, and mirrors. Measure your actual rig -- not just the manufacturer spec.
Weight limits
RV tire specs
These are the tires on your RV -- not the dinghy or tow vehicle. Check your door placard or sidewall for the correct values.
🗓 Tire manufacture dates
Find the 4-digit number at the end of the DOT code on the tire sidewall. Example: DOT ...2319 = Week 23 of 2019. Enter front and rear separately if they differ.
Front tires
Rear tires
Towing config
No RV selected
Go to Garage to select
Coach weight limits
Towing
Load balance
Front side-to-side
--
--
Rear side-to-side
--
--
Tire pressure
Front recommended--
Front current--
Rear recommended--
Rear current
--
--
No RV selected
Go to Garage
Rig dimensions
Clearance check

US standard limits -- always verify locally

On-road reminders
No RV selected
Go to Garage

Corner scale readings

Axle loads

Front axle
----
Rear axle
----
Coach total
----
Combined
----
No RV selected
Go to Garage

Current cold tire pressures

Smart PSI recommendations

Front axle
--
recommended PSI
--
Rear axle
--
recommended PSI
--
Calculation basis
Heaviest front corner--
Heaviest rear side--
Front / rear setup--
Safety buffer--
📊 Load-inflation table

Select an RV with a tire size to see its load-inflation table.

👁 Pre-trip visual inspection

Walk around and inspect every tire before each trip. Tap each item as you check it.

🔍 How to find your tire's manufacture date

Every tire made after 2000 has a DOT code stamped on the sidewall. The last 4 digits tell you when it was made.

Look for this on the sidewall:
DOT AB CD EFG 2319
The last 4 digits are the date code
23
First 2 digits
Week of the year
(01 = first week of Jan)
19
Last 2 digits
Year of manufacture
(19 = 2019)
📍 The DOT code is on the inner or outer sidewall -- you may need to look at both sides
📍 The full code starts with DOT followed by letters and numbers
📍 Only the last 4 digits matter for the date -- ignore the rest
📍 Tires made before 2000 have only 3 digits -- replace immediately
📍 If front and rear tires are different ages, record them separately in the garage
⚠️ Tire age guidelines & replacement rules
0–5
Years
Generally safe -- inspect annually
5–7
Years
Inspect carefully -- consider replacing
7+
Years
Replace -- regardless of appearance
🔴 Most RV tire manufacturers recommend replacing after 7 years regardless of tread depth
🔴 The NHTSA recommends inspecting tires annually after 5 years and replacing after 10 years maximum
🔴 RVs age tires faster than cars -- UV exposure, ozone, and sitting still degrade rubber even without miles
🔴 A tire can look perfect and still be structurally compromised from age -- do not judge by appearance alone
🔴 If in doubt, have tires inspected by a qualified tire technician before any long trip
Tank levels
Fresh water
25% full
Fuel
100% full
Black/gray tanks
10% full
Tap the ✏️ pencil to edit or reorder any item. Use ↑ ↓ to change order.
+ Add item
Edit checklist item
Trip history
0 travel days logged
Pre-trip report
Ready to generate

Choose "Save as PDF" in the print dialog

This app helps RV owners travel safely by tracking weight limits, tire pressures, towing specs, rig dimensions, and travel day checklists -- all in one place. Start by adding your RV in the Garage, then work through each tab before every departure.

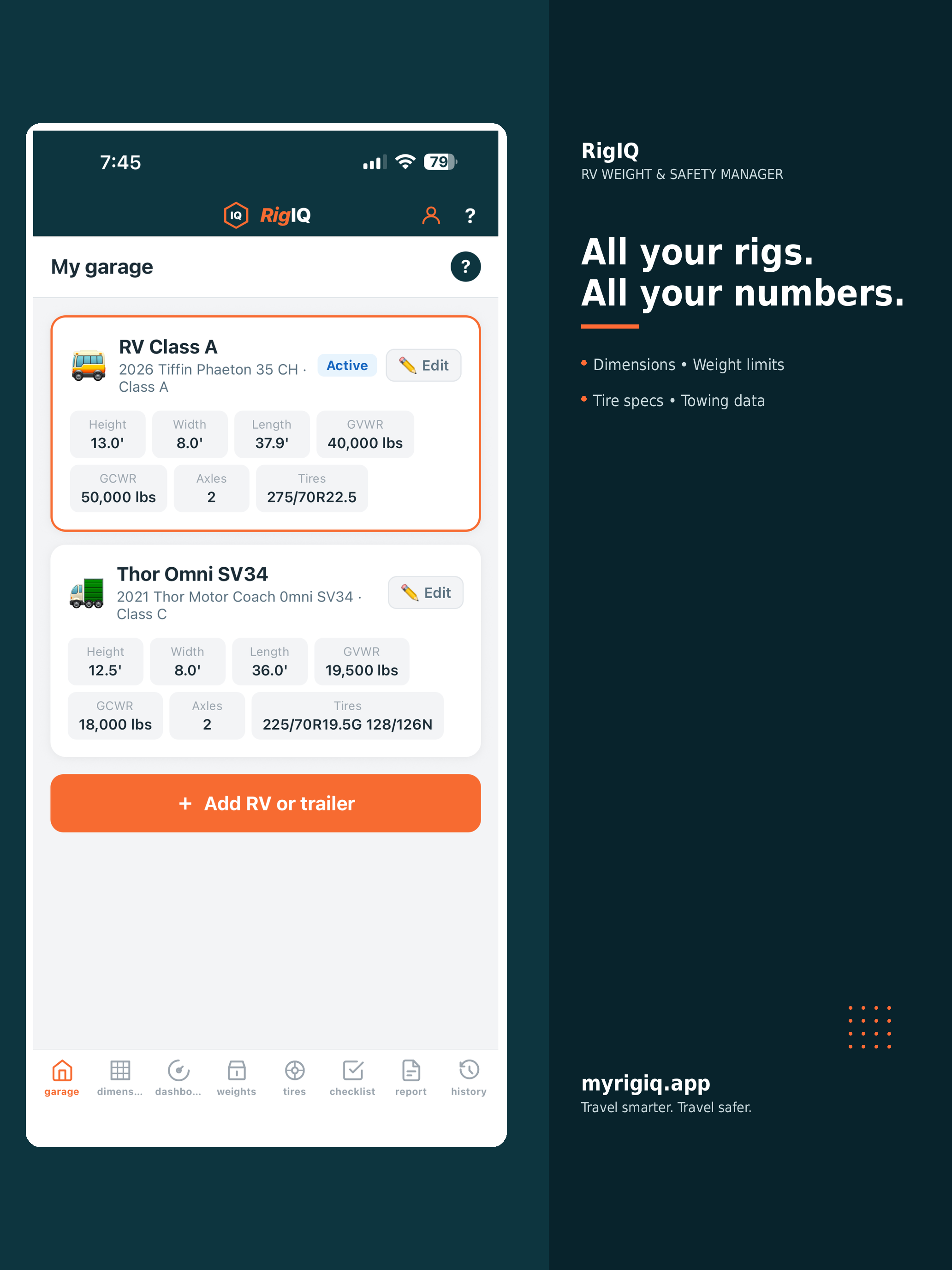

🏠 Garage

Your fleet hub. Store all your RVs, motorhomes, and trailers here. Each vehicle keeps its own specs, dimensions, tire data, and towing configuration.

Add a vehicleTap ✚ Add RV or trailer
Select active RVTap any garage card -- all tabs update
Edit specsTap Edit on the garage card
Delete a vehicleEdit → Delete this RV (bottom)

Specs to enter

GVWRGross vehicle weight rating
GCWRGross combined weight (coach + tow)
Front / Rear GAWRPer-axle weight limits
Height / Width / LengthInclude roof AC, antennas, protrusions
Tire size + placard PSIFrom door placard or sidewall
Tire DOT datesFront + rear week and year (see Tires tab)
⚠ AI spec lookup works in the hosted app (rigready.app). For this local file, enter specs manually from your door placard -- that sticker is the legal authority for your rig.
🚗 Towing specs (in Edit RV)

Towing rated limits are stored as garage specs. These are maximums -- actual trip weights are entered on the Weights tab each trip.

Motorhome -- flat tow / dinghy

Max dinghy weight ratedFrom motorhome towing guide
Max tow bar ratingFrom tow bar manufacturer
Dinghy vehicle + weightYour specific dinghy details
Tow bar & braking weightAdded to rear axle load calculation

Towable -- Fifth Wheel / Travel Trailer / Toy Hauler

Max tongue / pin weight ratedTrailer rated limit
Hitch ratingYour hitch max rating
TV GVWRTow vehicle gross weight limit
TV payload capacityTongue weight counts against this
TV max tow ratingTrailer GVWR checked against this
TV rear GAWRRear axle limit (optional)
💡 The Dashboard checks your actual trip weights against all of these limits and shows a pass / caution / over badge for each one.

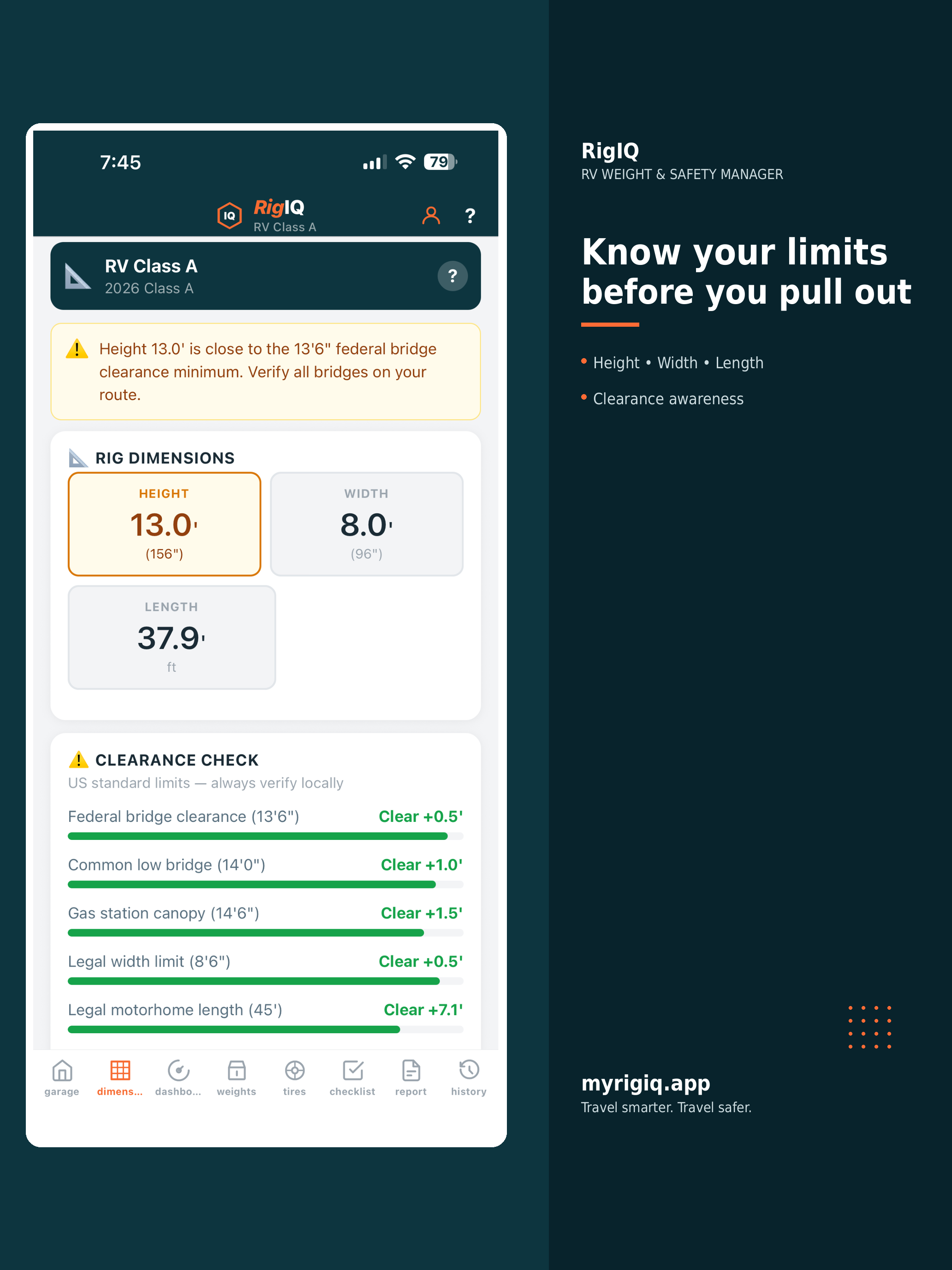

📐 Dims

Your rig height, width, and length with live clearance checks against US legal limits.

Height warningAmber at 13'0" -- Red at 13'6"
Width warningFlags above 8'6" (permit required)
LengthLegal limit 45' most states
Combo lengthTotal with dinghy or trailer
Edit dimensionsTap ✏ Edit dimensions (bottom of tab)
💡 Measure your actual height including roof AC units and antennas -- never rely solely on the manufacturer spec.

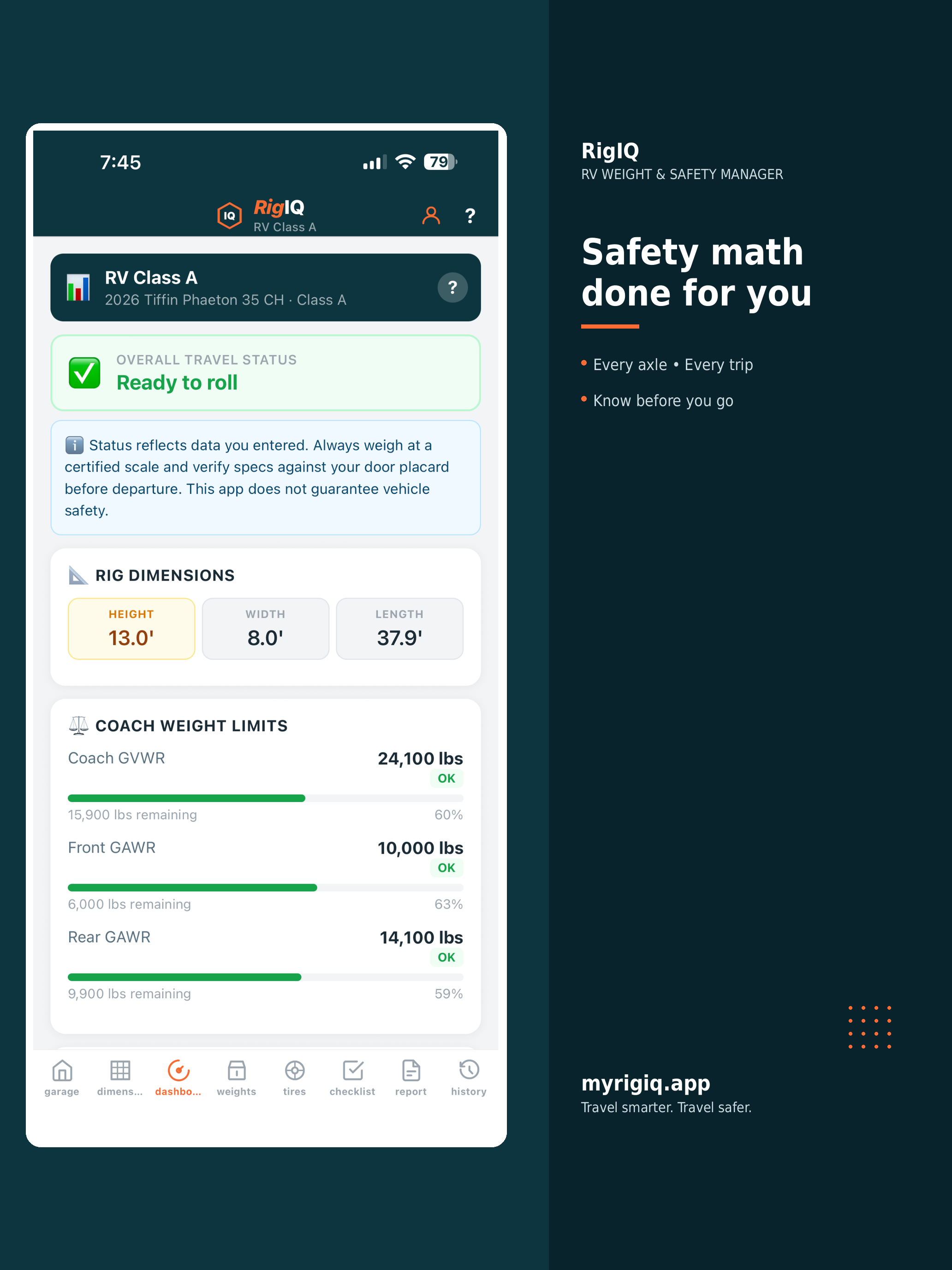

📊 Dashboard

Your single at-a-glance safety screen. Every weight, tow, tire, dimension, and tire age check is reflected in the status banner.

Green -- Ready to rollAll checks pass
Amber -- CautionAt least one check near limit
Red -- Do not travelAt least one limit exceeded
Rig dimensionsHeight / width / length mini card
Coach weight limitsGVWR + front/rear GAWR badges
Towing sectionGCWR + all tow rated limits
Load balance>5% side-to-side = repack cargo
Tire pressureCurrent vs recommended PSI
Tire ageFront + rear age status mini card
⚖ Weights

Enter your four corner scale readings for this trip. The app checks them against all limits stored in your garage specs and shows pass / caution / over for each.

Corner weightsLeft/right front + left/right rear
Axle totalsCalculated automatically
Coach total vs GVWRAll four corners combined
Motorhome dinghyDinghy weight + tow bar gear weight
Towable tongue weightEnter actual tongue scale reading
Tow vehicle weightWeighed fully loaded for the trip
💡 Use a certified CAT scale or portable axle scales. Weigh fully loaded -- fuel, water, all passengers and gear. Weights change every trip.
🔵 Tires

Smart PSI recommendations from your corner weights, tire age tracking from the DOT code, a visual inspection checklist, and the manufacturer load-inflation table for your tire size.

PSI recommendations

Enter current PSIAlways check cold, before driving
Recommended PSIBased on your heaviest corner weight
Safety buffer5% default -- set per RV in garage

Load-inflation table

Built-in tables18 common RV tire sizes included
Your load highlightedBlue = front axle row, green = rear
Unlisted sizesFetch button available (needs internet)

Tire age tracking

Where to enter DOT datesEdit RV → tire specs section
Age status coloursGreen <5yr / Amber 5-7yr / Red 7+yr
Reading the DOT codeLast 4 digits on sidewall = WWYY
Example: 2319Week 23 of 2019

Visual inspection

8 inspection itemsCracks, bulges, tread, embeds, valves...
Check before each tripToggle each item as you inspect
ResetTap Reset inspection to clear all
⚠ Inflate both tires on the same axle to the same PSI. Never exceed the sidewall maximum, wheel rating, or valve stem rating -- whichever is lowest.

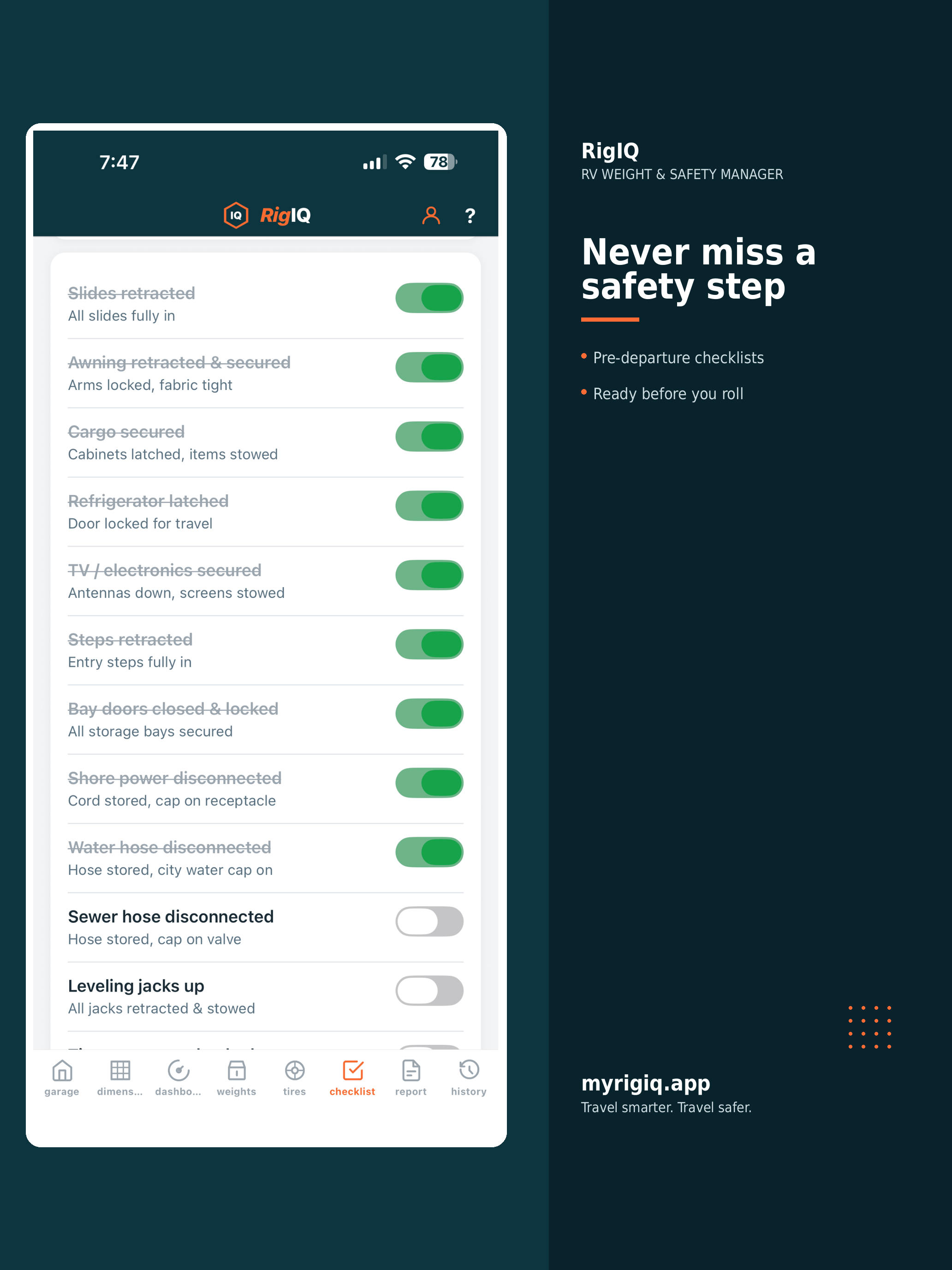

☑ Checklist

A fully customizable three-phase travel day checklist. Work through each phase in order. Towing-specific items appear automatically for your RV type.

Three phases

Pre-departureInterior, exterior, tires, safety
En routeFirst stop + fuel stop checks
ArrivalPulling in + full site setup
Phase tabs turn greenWhen all items in that phase are done

Destination & trip info

Destination searchType 3+ chars for live suggestions
Pick a suggestionSaves exact location for the History map
Departure date + drive timeSaved with the trip record

Customizing

Open ManageTap the Manage button in the banner
Add an itemScroll to + Add item at the bottom
Edit or reorderTap any item row -- use arrows to reorder
Move between phasesEdit item → change Phase dropdown
Reset to defaultsManage → Reset to defaults (per phase)
Save to historyTap Mark travel day complete
💡 Always pick a destination from the suggestions -- this saves the exact lat/lon so the trip appears correctly on the History map.

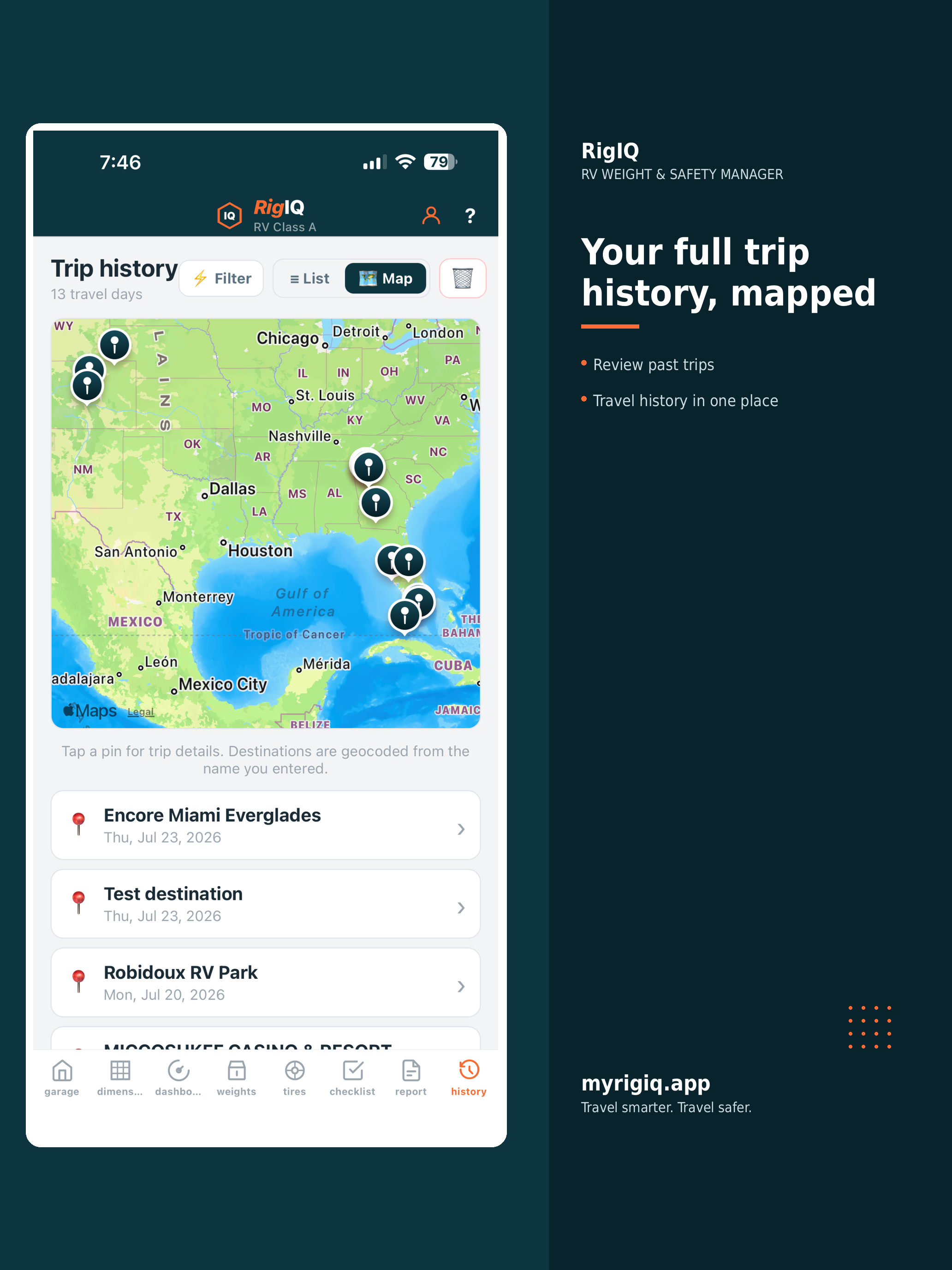

📍 History

Every completed travel day is saved here. Switch between list and map view using the toggle in the top right corner.

List view

View a tripTap any history card
Delete a tripOpen trip → Delete entry (bottom)
Clear allTrash icon (top right)

Map view (requires internet)

Switch to mapTap the Map button in the toggle
Green pinsAll checklist phases completed
Amber pinsSome checklist items missed
Tap a pinDestination, date, RV + View details button
No pin shownDestination text could not be geocoded

What is saved per trip

Destination + locationText + lat/lon for the map pin
Corner weightsAll four + axle totals
Tire pressuresActual vs recommended
Tank levelsWater, fuel, black/gray
Full checklist snapshotEvery item, checked or not
⚠ History is stored locally on this device. Clearing Safari browser data will erase it. Cloud sync is coming in the full hosted app.
📄 Report

Generate a printable pre-trip safety report capturing live data from the app. Tap Generate then use Save as PDF in the print dialog.

IncludesWeights, tow limits, tires, dims
Checklist snapshotEvery item with check or cross
Colour codedGreen / amber / red per limit
Save as PDFPrint dialog → Save as PDF
ShareShare PDF via Files, Mail, AirDrop
💡 Generate your report after entering weights and tire pressures -- it captures the data exactly as it stands at that moment.
💡 Quick tips
All data saves automatically to your device -- no login needed
Add to iPhone home screen: Safari → Share → Add to Home Screen
Always verify specs against your RV door placard -- it overrides everything
Weigh fully loaded every trip -- cargo and passengers change your numbers
Check tire PSI cold before any driving, not after miles on the road
Enter tire DOT dates in Edit RV -- the Tires tab tracks age and warns you
Tow rated limits go in Edit RV -- actual trip weights go in the Weights tab
Tap Manage on the Checklist tab to add items specific to your rig
Pick destinations from the search suggestions -- this saves the map pin location
Switch to Map view in History to see all your trips plotted (needs internet)
AI spec lookup and manufacturer tire tables work in the hosted app at rigready.app
